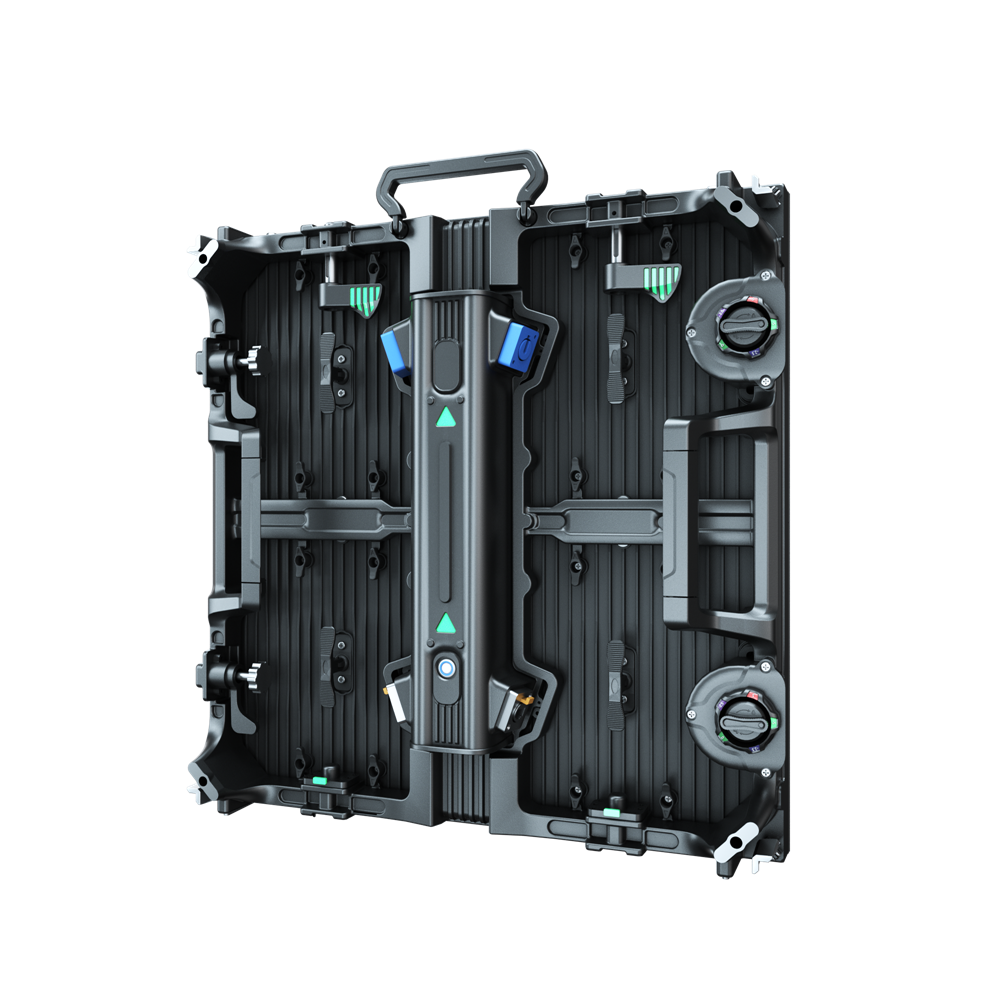

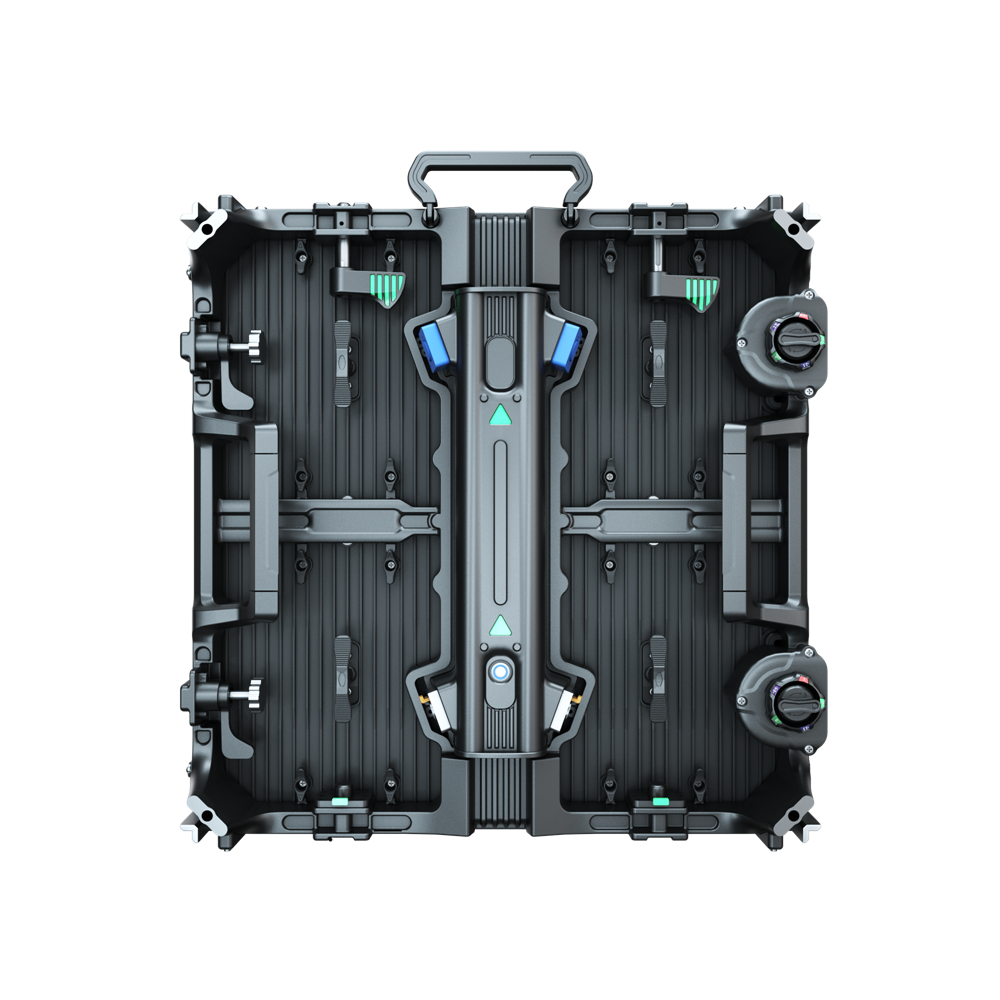

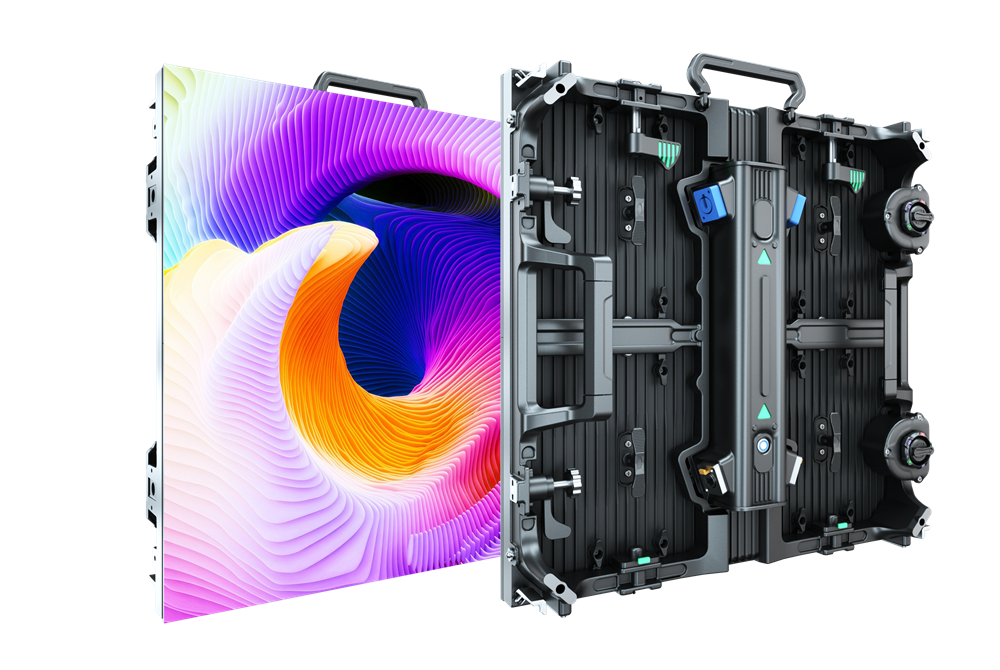

RC500
1.Excellent design of heat output channel,make sure the heat can be discharged quickly and effectively.

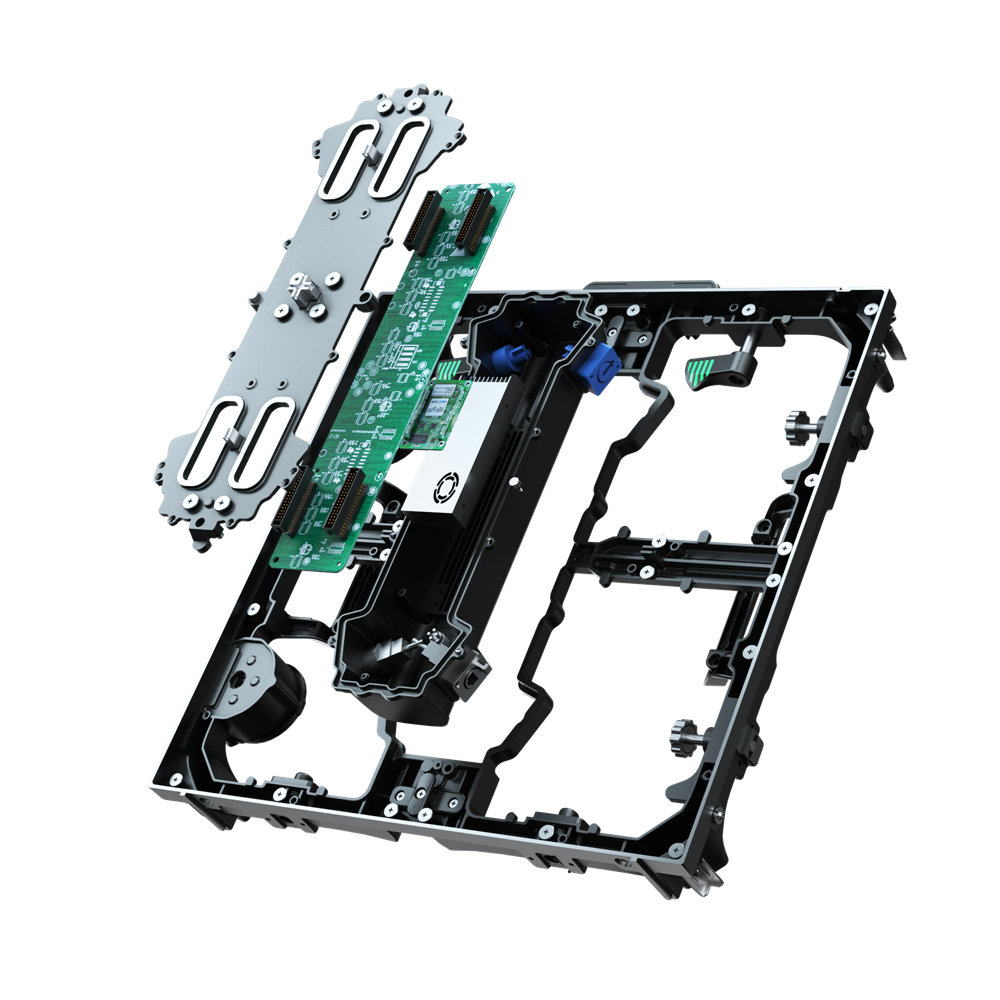

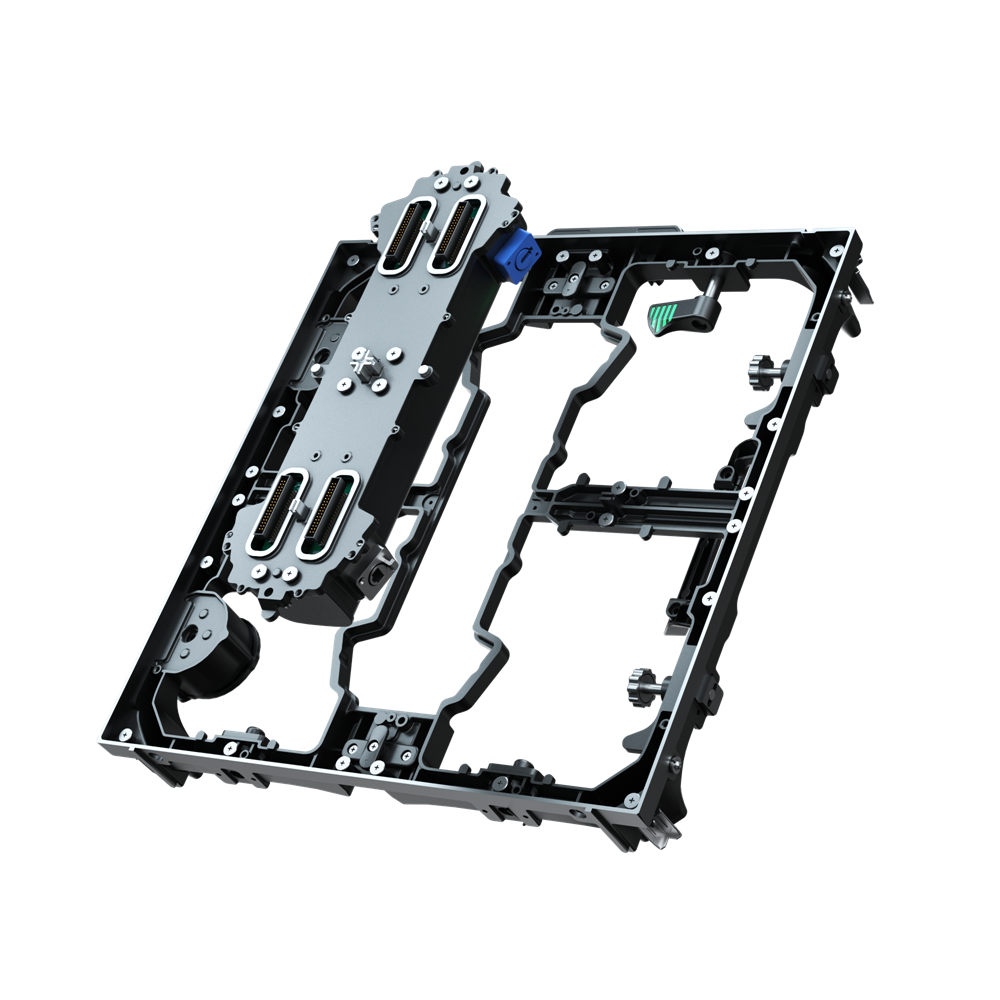

2.Replace the module directly without opening the rear cover.
3.Innovation Locking system with 15 degree for curved LED Screen installation.


SPECIFICATIONS

Item

RC500 Series

RC500 Series

RC500 Series

RC500 Series

RC500 Series

RC500 Series

Pixel Pitch

2.6mm

2.97mm

3.91mm

P2.97mm

3.91mm

4.81mm

LED Encapsulation

SMD1515

SMD1515

SMD2121

SMD1415

SMD1921

SMD1921

Scan Mode

1/32 Scan

1/21 Scan

1/16 Scan

1/21 Scan

1/16 Scan

1/13 Scan

Pixel Per Sq.m

147,456 Pixel

112,896 Pixel

65,536 Pixel

112,896 Pixel

65,536 Pixel

43,264 Pixel

Brightness(Nits)

1000

1000

1100

4000

4500

4500

IP Protection

IP43

IP43

IP43

IP65

IP65

IP65

Maintenance Method

Front/Rear Serviceable

Cabinet Material

Die Casting Aluminum

Curved Angle(0ptional)

±15 Degrees

Module Size(W*H)

250mm*250mm

Cabinet Size(W*H*D)

500mm*500mm*90mm

Refresh Rate

3840Hz

Color Temperature

9500K ±500(Adjustable)

Gray Scale

14-16Bit

Cabinet Weight

7KG

Average Power Consumption

350-400Watt/㎡

Max Power Consumption

800Watt/㎡

Operating Temperature

-20°C to 50°C
