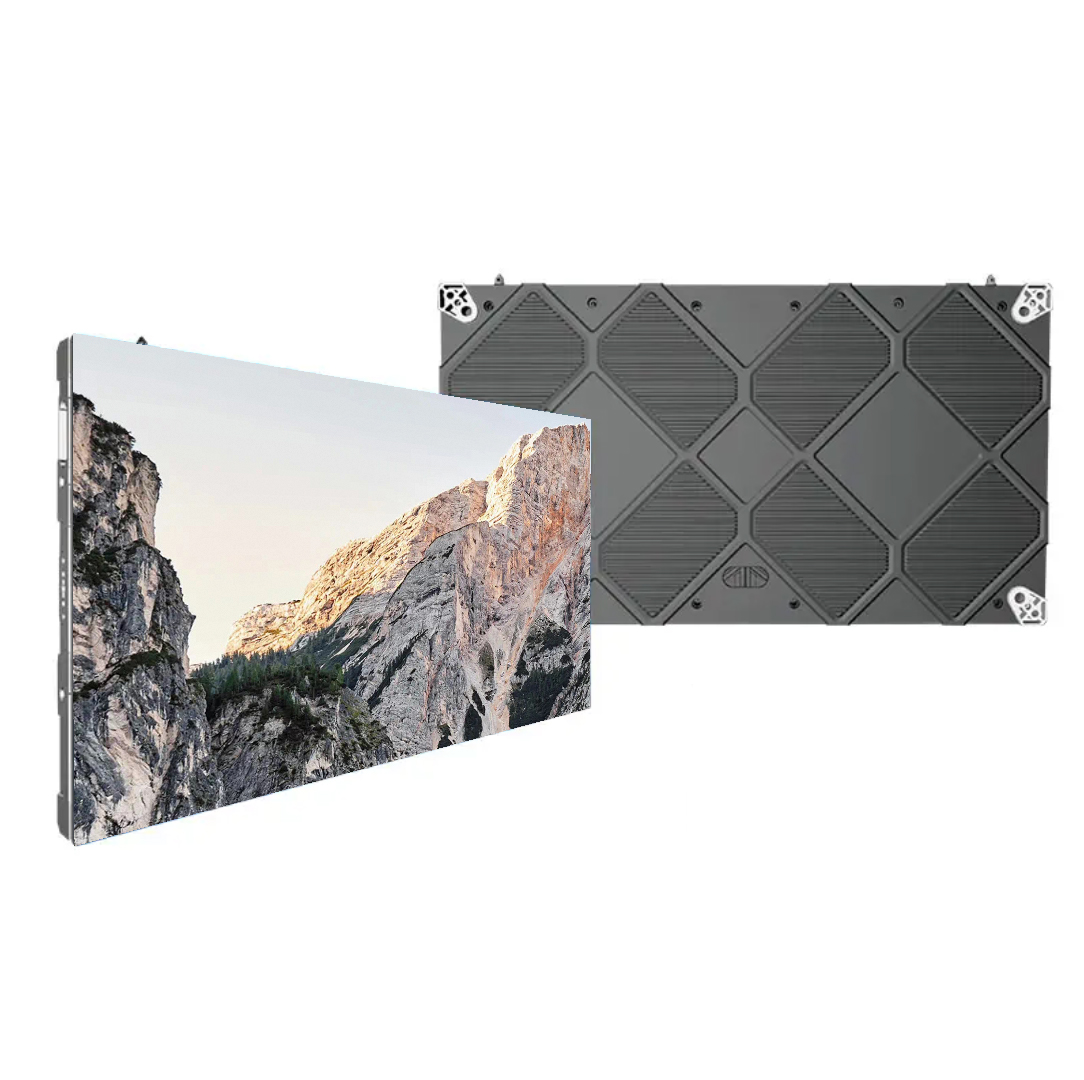

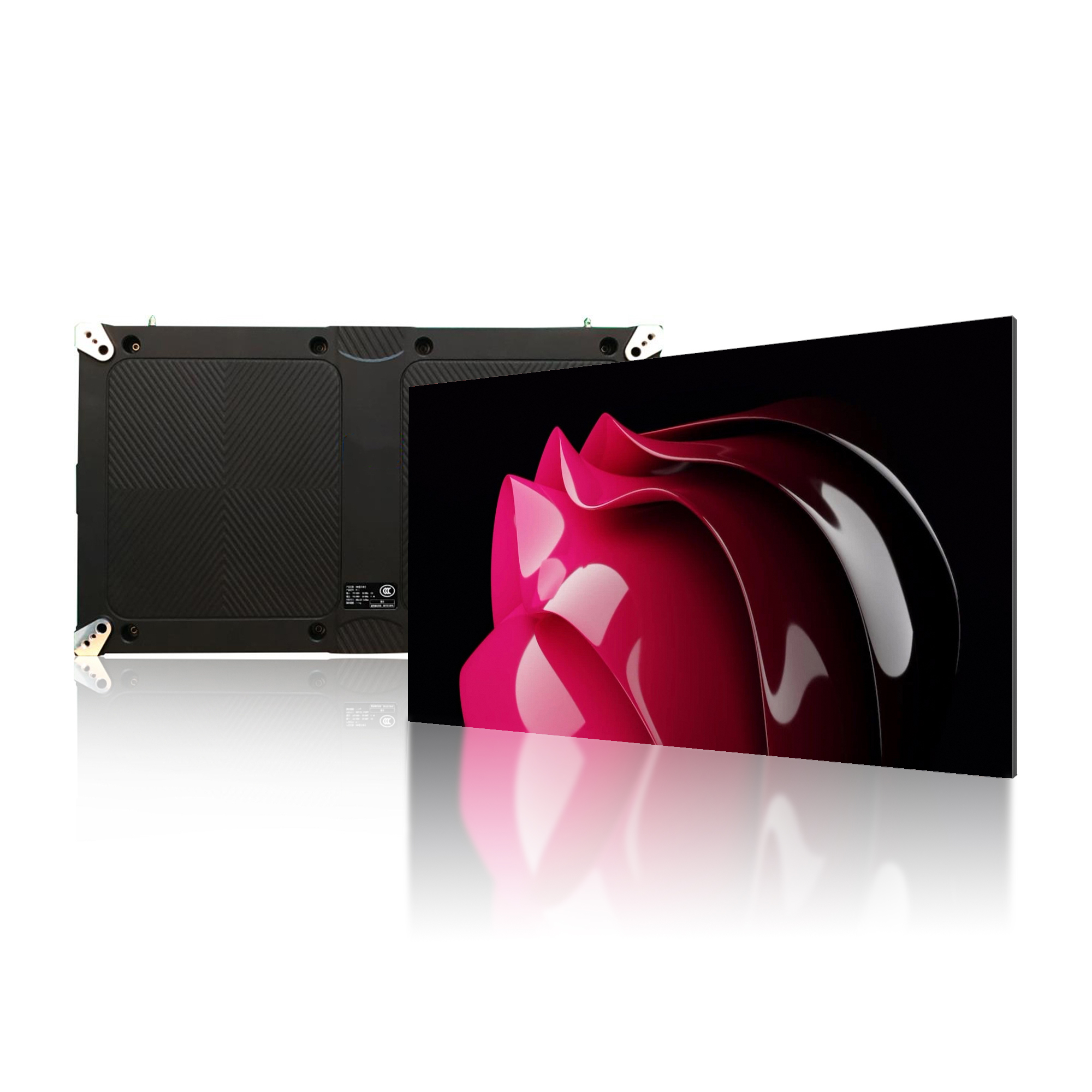

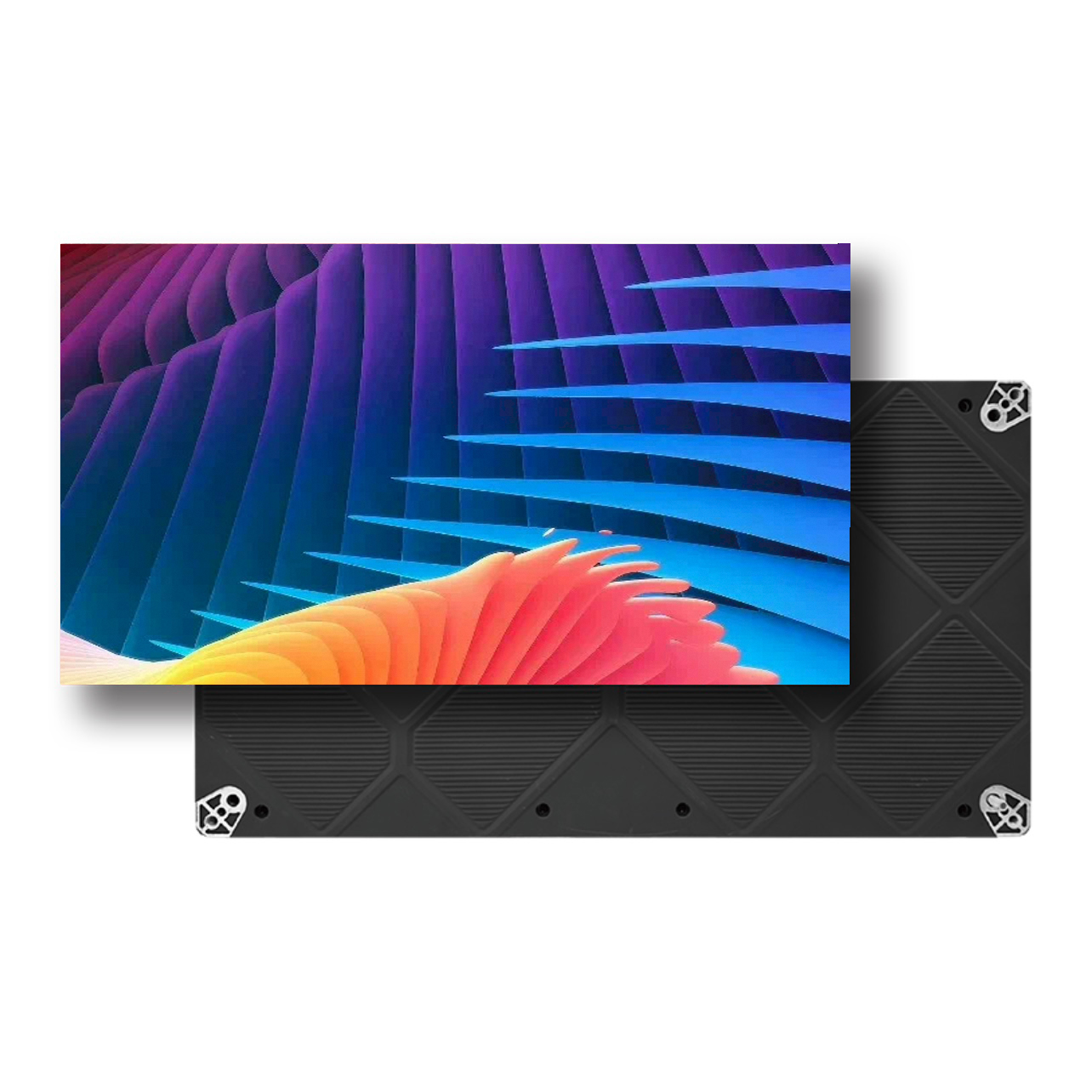

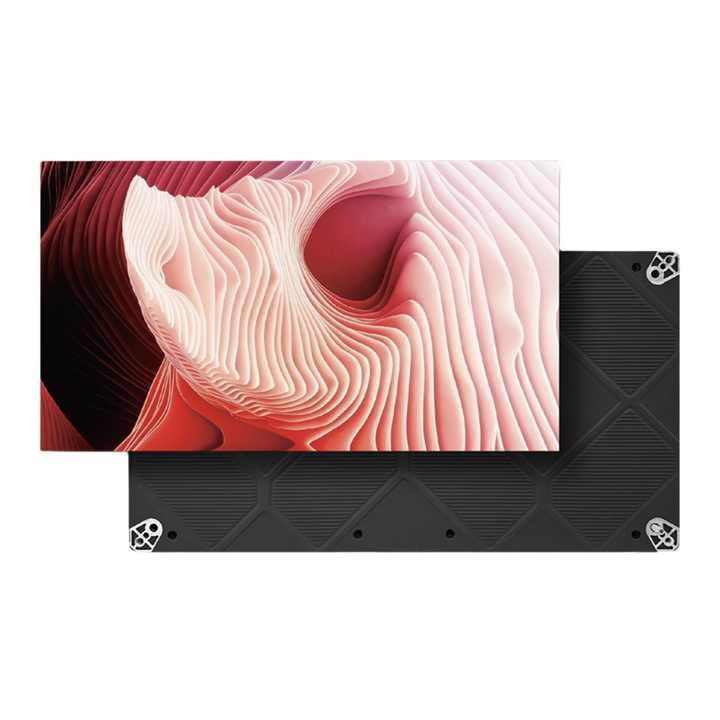

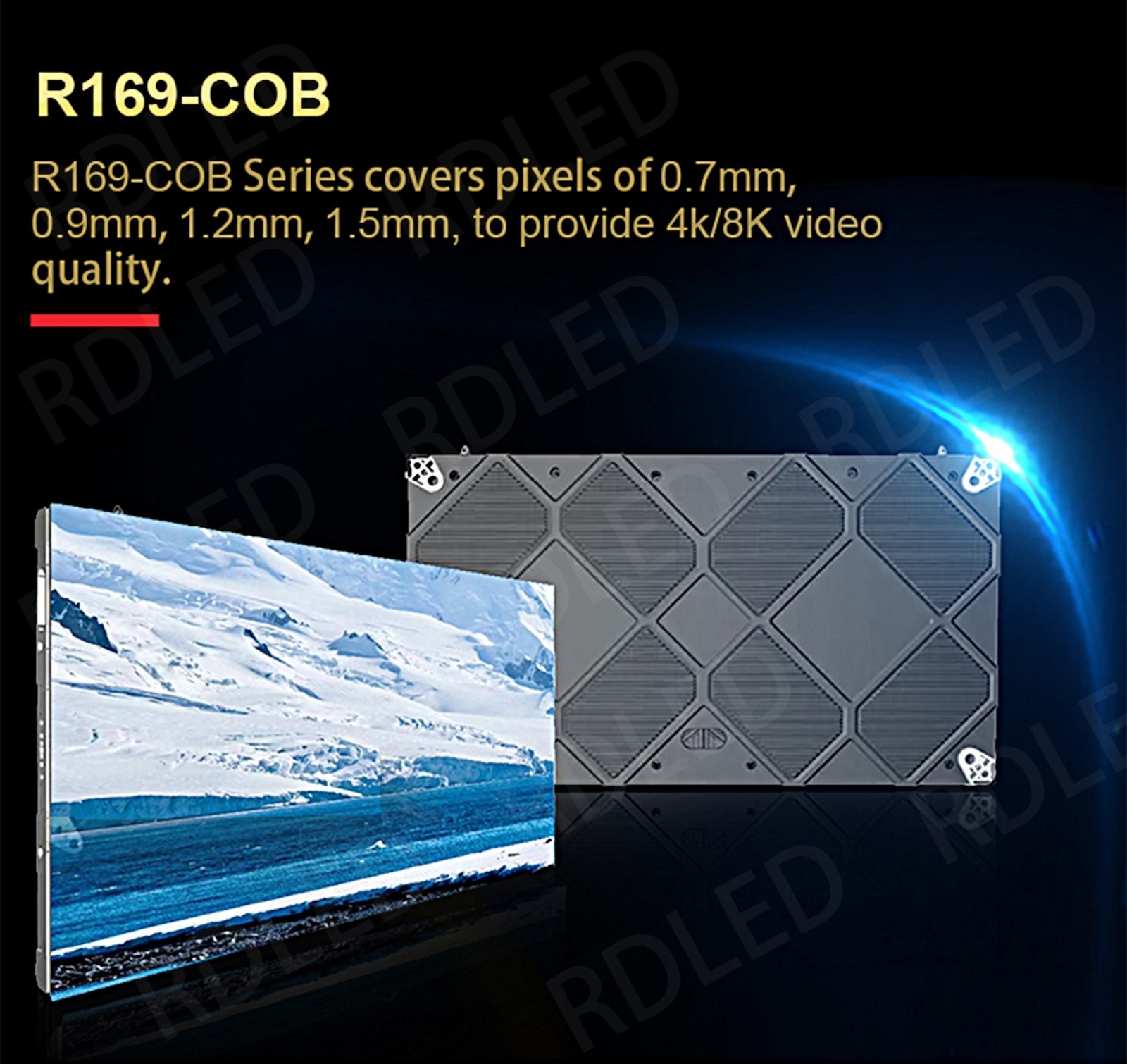

R169-iCOB



SPECIFICATIONS
ItemR169-COBR169-COBR169-COBR169-COB
Pixel Pitch0.46mm0.79mm0.93mm1.26mm
Cabinet Resolution1280*720768*432640*360480*270

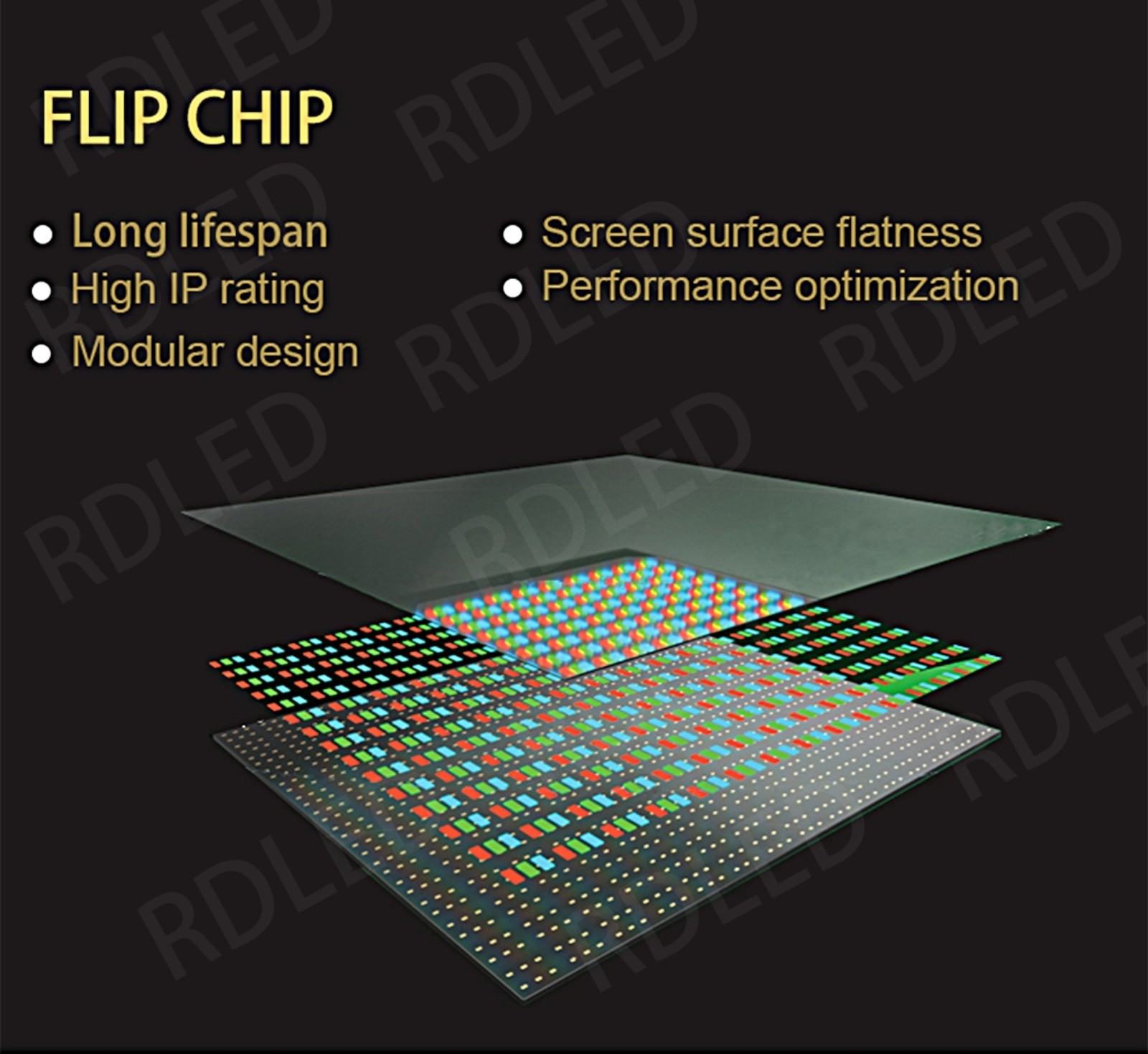

LED EncapsulationCOB Flip ChipCOB Flip ChipCOB Flip ChipCOB Flip Chip
Brightness(Nit)600600600800

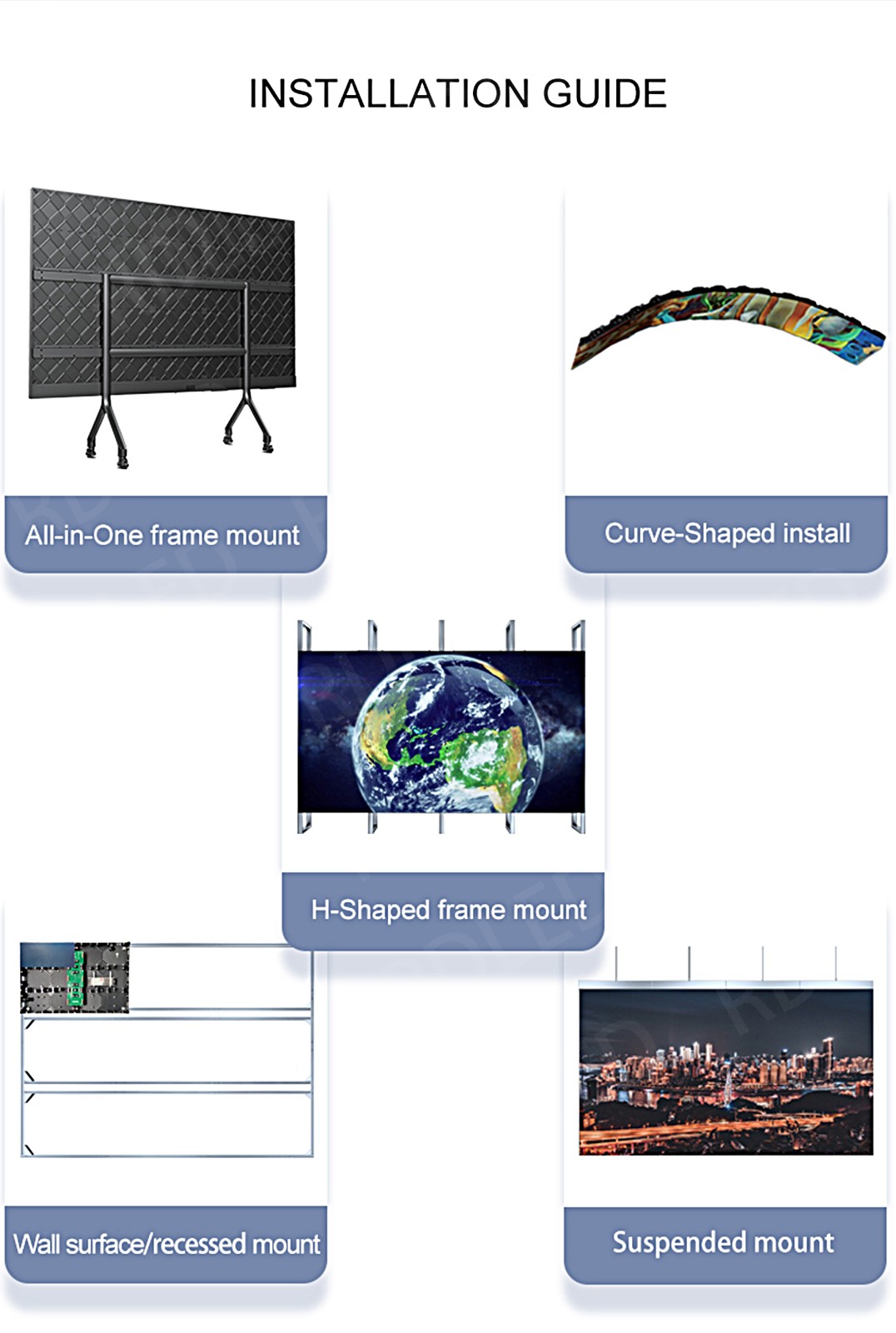

Install/MaintenanceFront Serviceable
Optional Back-upPower Supply & Receiving Card
Cabinet MaterialDie Casting Aluminum
Module Size(W*H)300*337.5mm   /  304*342mm

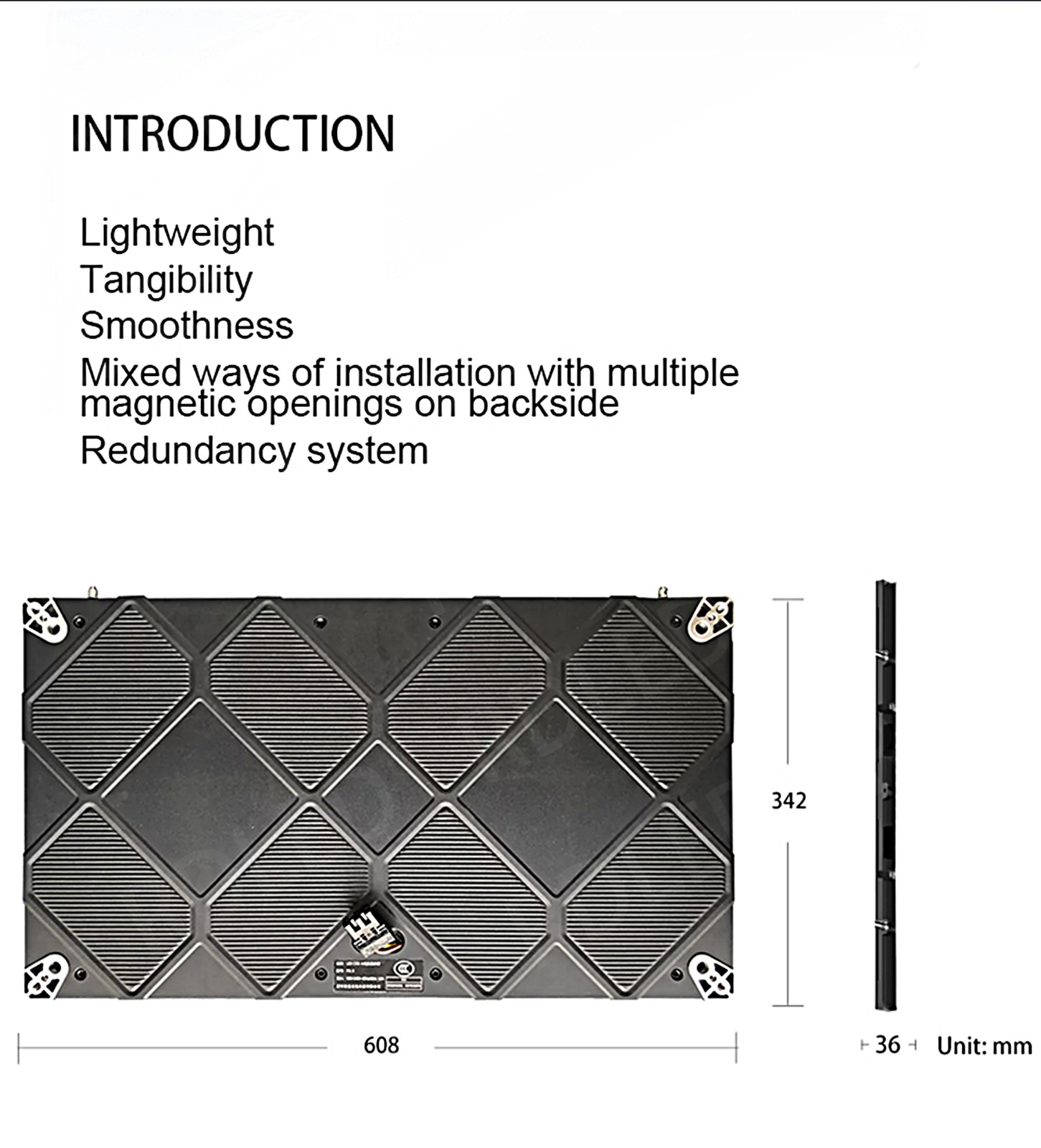

Cabinet Size(W*H*D)600*337.5*40mm  /  608*342*37mm
Refresh Rate3000Hz
Color Temperature6500K（Adjustable）
Gray Scale13bits
Cabinet Weight5.5KG/Piece
Max Power Consumption200Watt/m2
Operating Temperature-10°C to 40°C
Working Voltage100-240Volt(50-60hz)
