RH500-Shenzhen RDLED Optoelectronics Co., Ltd.

RH500

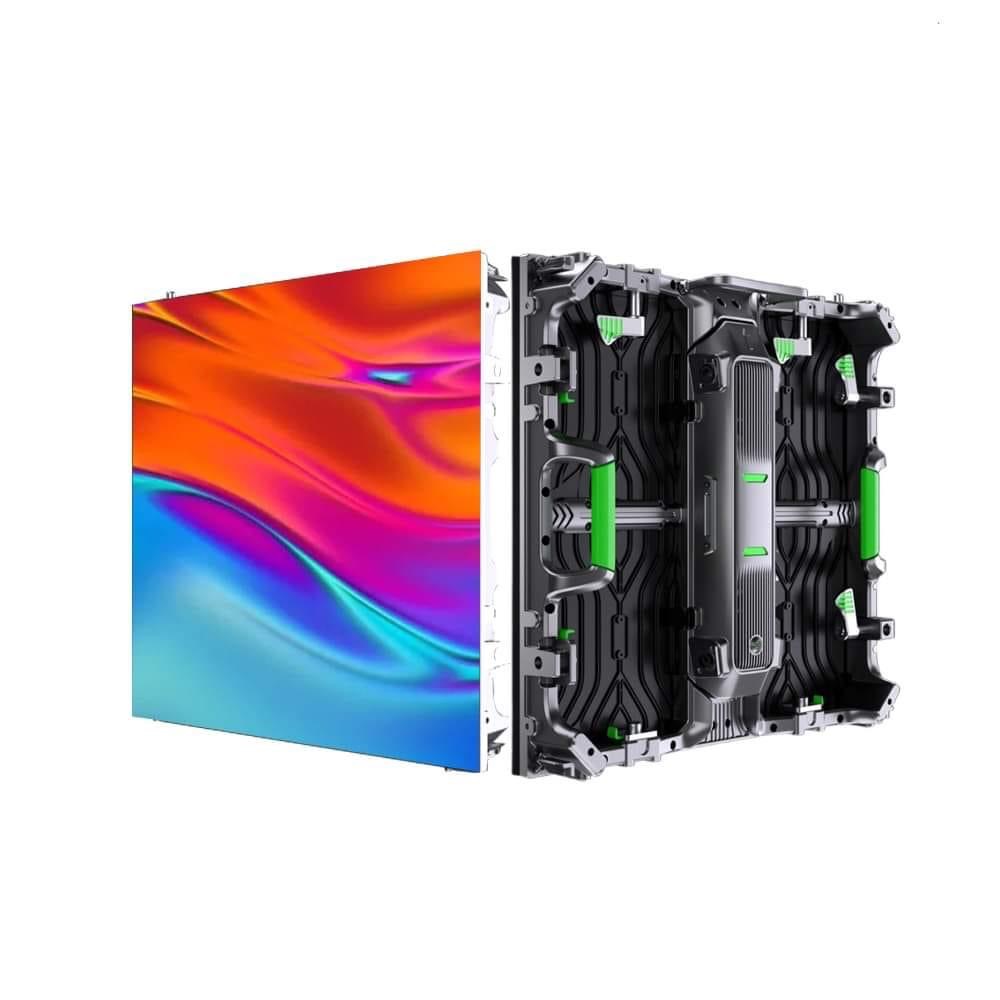

1.500x500mm panel weighs 7.5 kg,easy to lift and install.

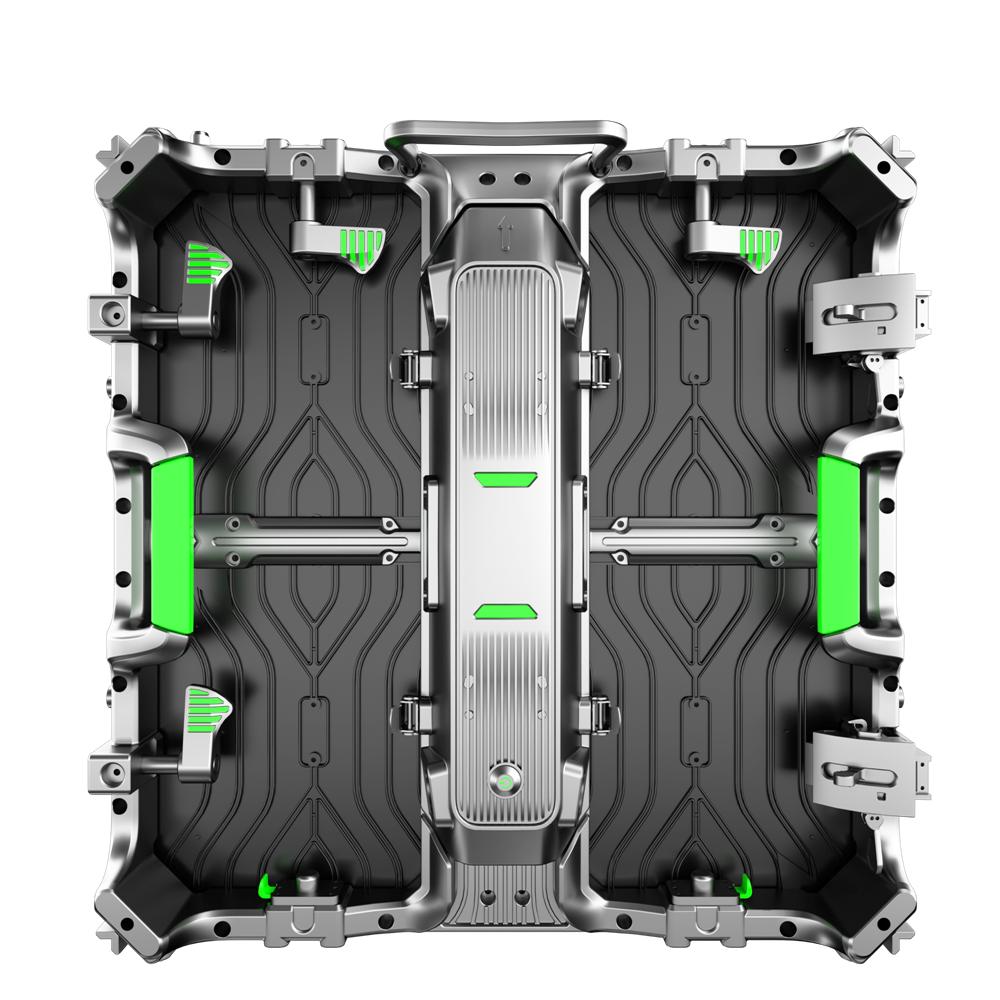

2.Indicator Light on back cover to show working status.
3.New fast lock design,easy and seamless installation.

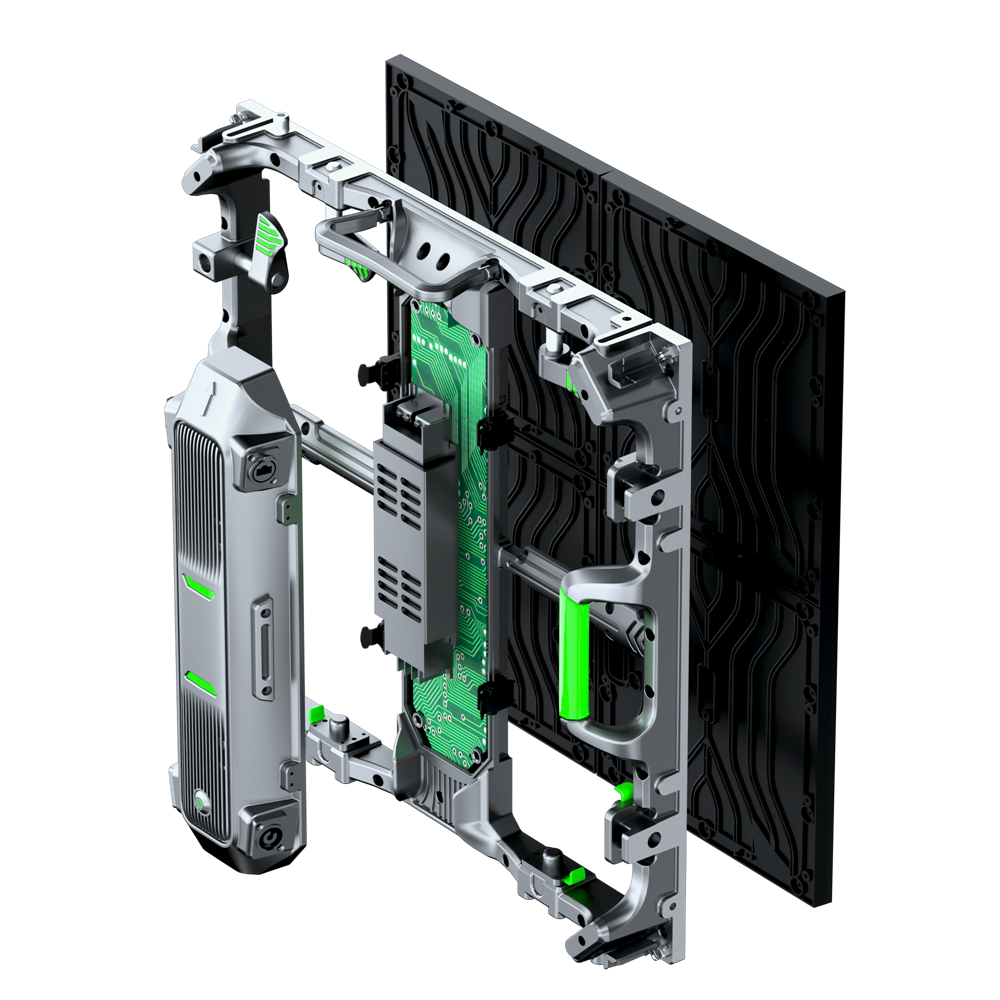

4.Front Serviceable Module Design and easy to remove LED module,save time for maintenance.

SPECIFICATIONS

Item	RH500 Series	RH500 Series	RH500 Series	RH500 Series	RH500 Series	RH500 Series
Pixel Pitch	2.6mm	2.97mm	3.91mm	P2.97mm	3.91mm	4.81mm
LED Encapsulation	SMD1515	SMD1515	SMD2121	SMD1415	SMD1921	SMD1921
Scan Mode	1/32 Scan	1/21 Scan	1/16 Scan	1/21 Scan	1/16 Scan	1/13 Scan
Pixel Per Sq.m	147,456 Pixel	112,896 Pixel	65,536 Pixel	112,896 Pixel	65,536 Pixel	43,264 Pixel
Brightness(Nits)	1000	1000	1100	4000	4500	4500
IP Protection	IP43	IP43	IP43	IP65	IP65	IP65
Maintenance Method	Front/Rear Serviceable
Cabinet Material	Die Casting Aluminum
Curved Angle(0ptional)	±15 Degrees
Module Size(W*H)	250mm*250mm
Cabinet Size(WHD)	500mm*500mm
Refresh Rate	3840Hz
Color Temperature	9500K ±500（Adjustable）
Gray Scale	14-16Bit
Cabinet Weight	7KG
Average Power Consumption	350-400Watt/㎡
Max Power Consumption	800Watt/㎡
Operating Temperature	-20°C to 50°C
