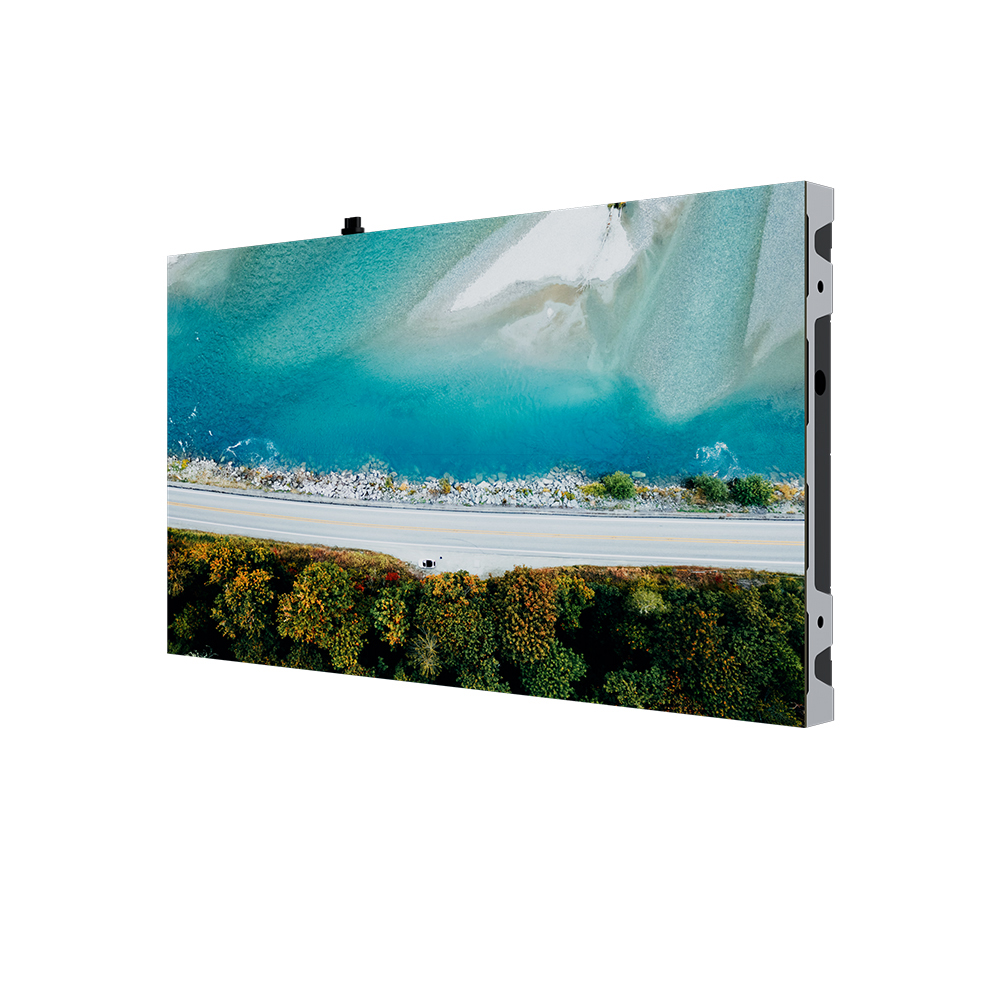

R169-S
1.Designed according to ergonomics, 16:9 screen ratio,2K 4K 8K large screens easily realized, high gray scale and high refresh rate in low brightness,perfect viewing experience.
2.Module structure easy to realize front-access maintenance, installation by fixing magnets, easy and convenient taking down of modules (only needs 30s), unique protective structure which protects modules from damaging. Module structure easy to realize front-access maintenance, installation by fixing magnets, easy and convenient dismentling of modules without the use of tools (only needs 30s), unique protective structure which protect modules from damaging.

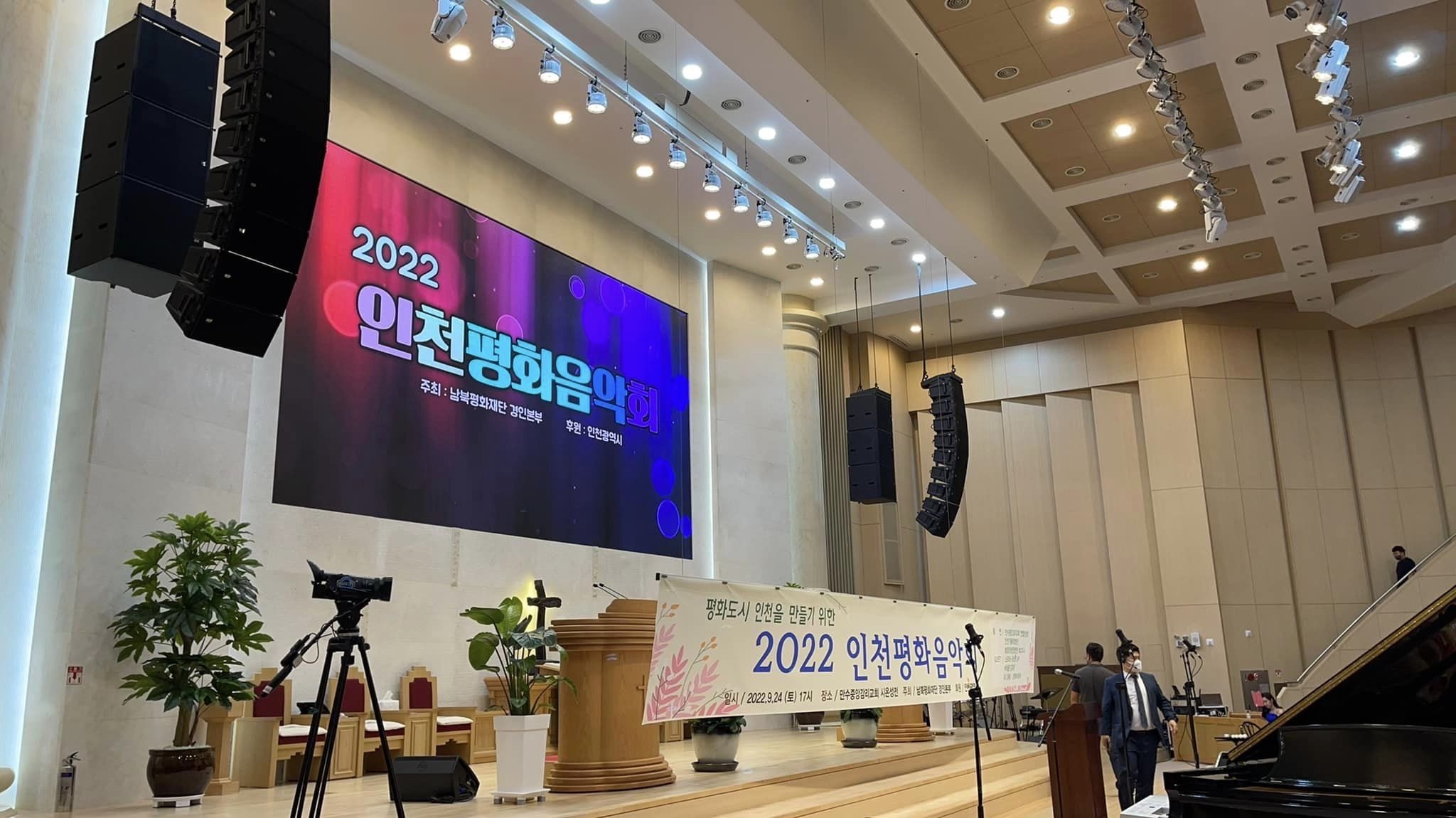

3.Application field:smart cities,traffic control centers,security monitoring centers, video meeting rooms,radio and TV systems,exhibition centers and other applications.

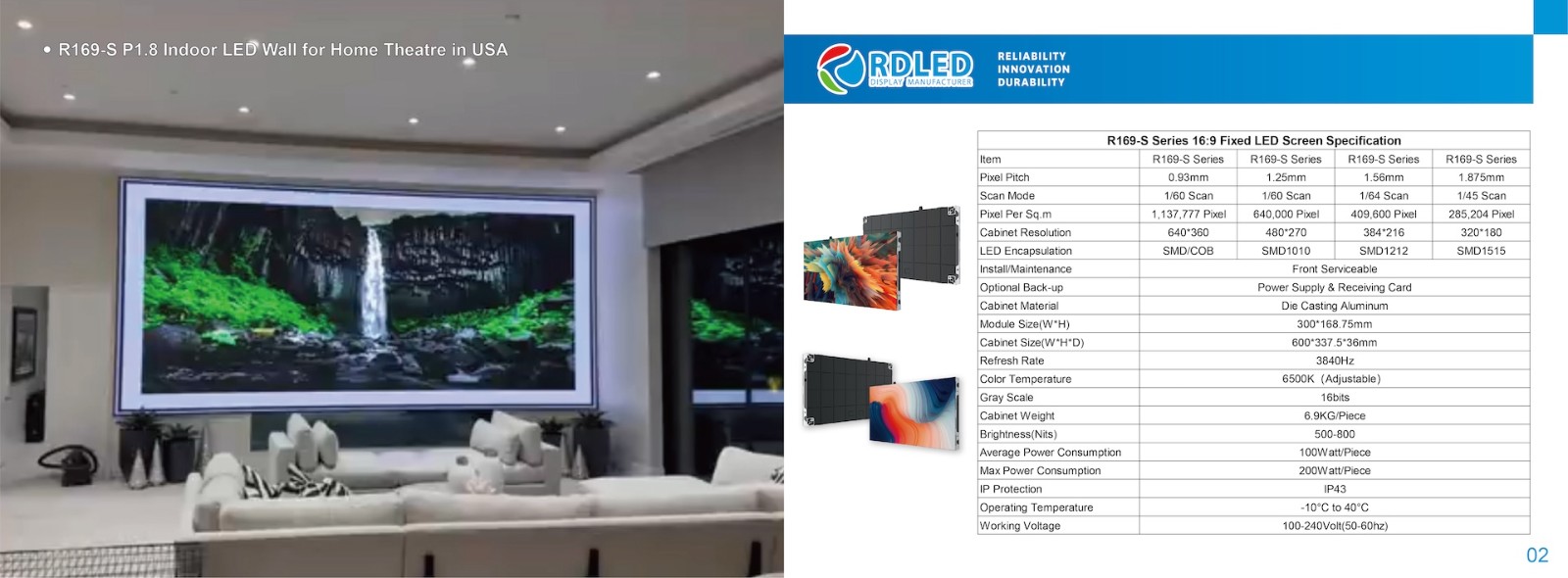

SPECIFICATIONS
ItemR169-S SeriesR169-S SeriesR169-S SeriesR169-S Series
Pixel Pitch0.93mm1.25mm1.56mm1.875mm
Scan Mode1/60 Scan1/60 Scan1/64 Scan1/45 Scan
Pixel Per Sq.m1,137,777 Pixel640,000 Pixel409,600 Pixel285,204Pixel
Cabinet Resolution640*360480*270384*216320*180
LED EncapsulationSMD/COBSMD1010SMD1212SMD1515
Install/MaintenanceFront Serviceable
Optional Back-upPower Supply & Receiving Card
Cabinet MaterialDie Casting Aluminum
Module Size(W*H)300*168.75mm

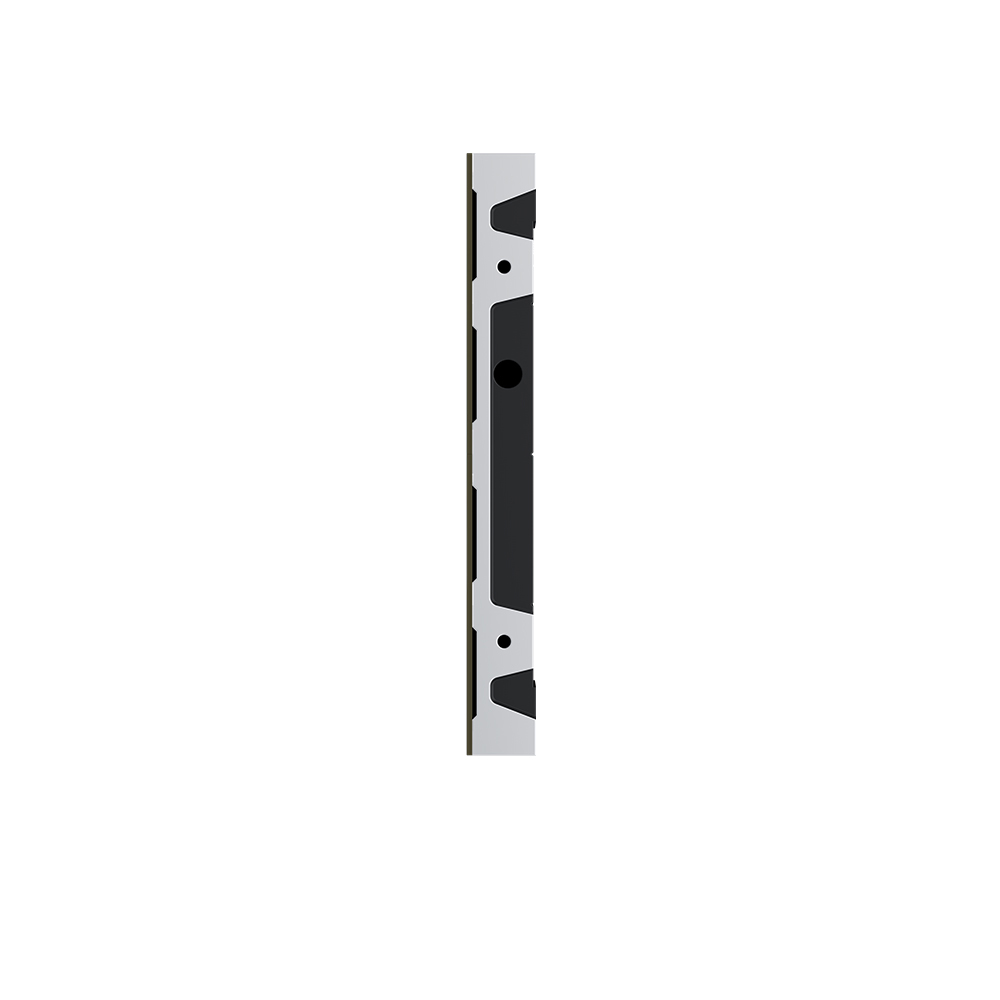

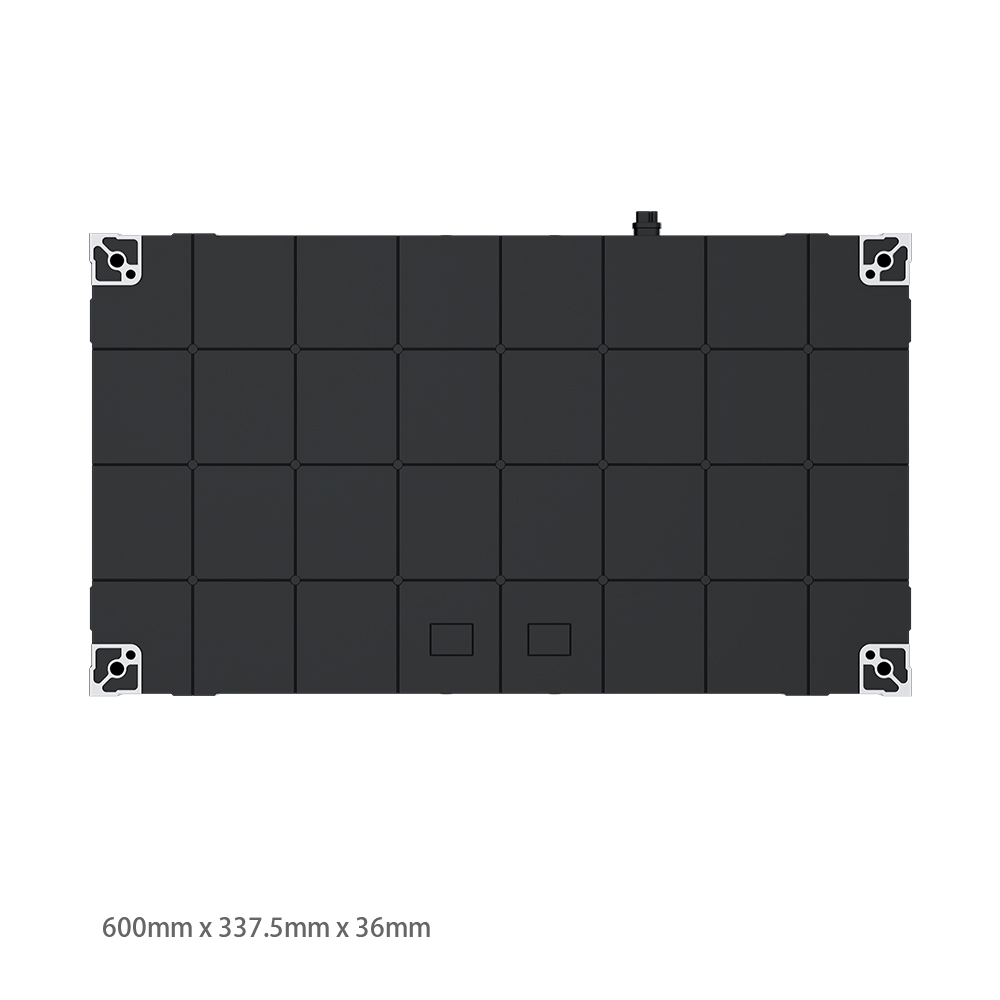

Cabinet Size(W*H*D)600*337.5*36mm
Refresh Rate3840Hz
Color Temperature6500KAdjustable
Gray Scale16bits
Cabinet Weight6.9KG/Piece
Brightness(Nits)500-800
Average Power Consumption100Watt/Piece
Max Power Consumption200Watt/Piece
IP ProtectionIP43
Operating Temperature-10°C to 40°C
Working Voltage100-240Volt(50-60hz)
