RDH
1.Creative innovations to replace traditional IRON structure outdoor permanent LED screen, widely used for outdoor applications.

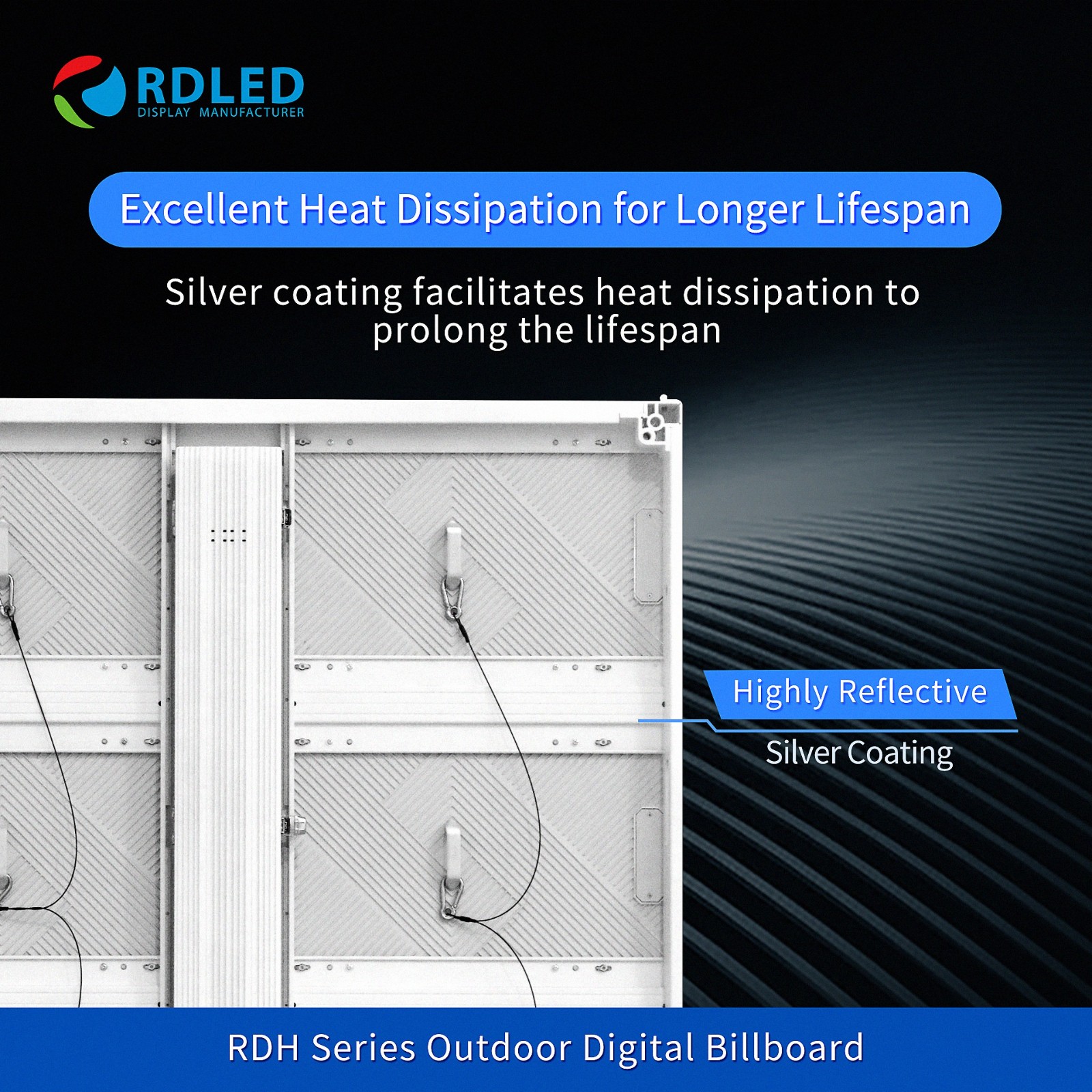

2.Without cooling fan nor A/C,less power consumption by 50%,High Brightness between 6000-12000nits.

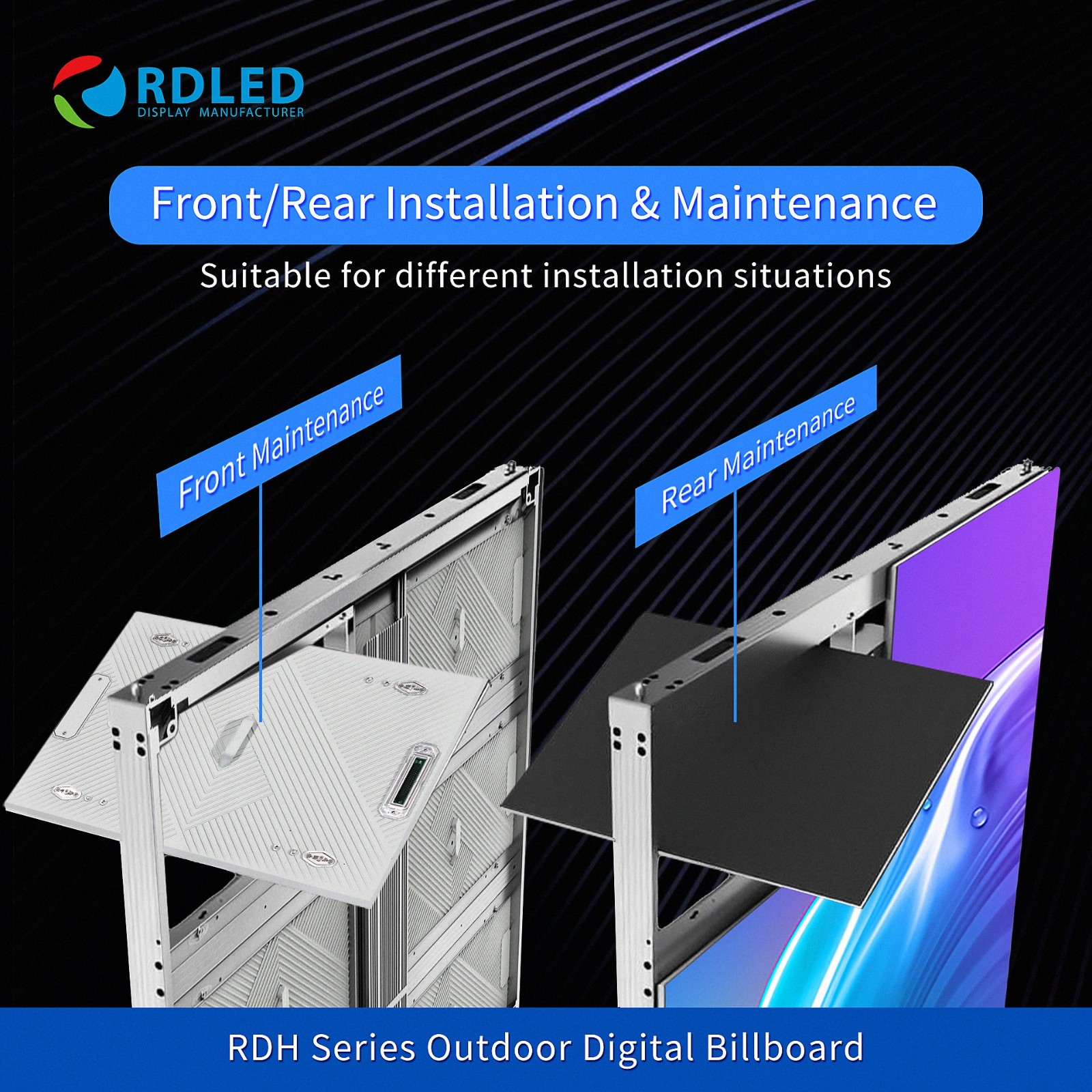

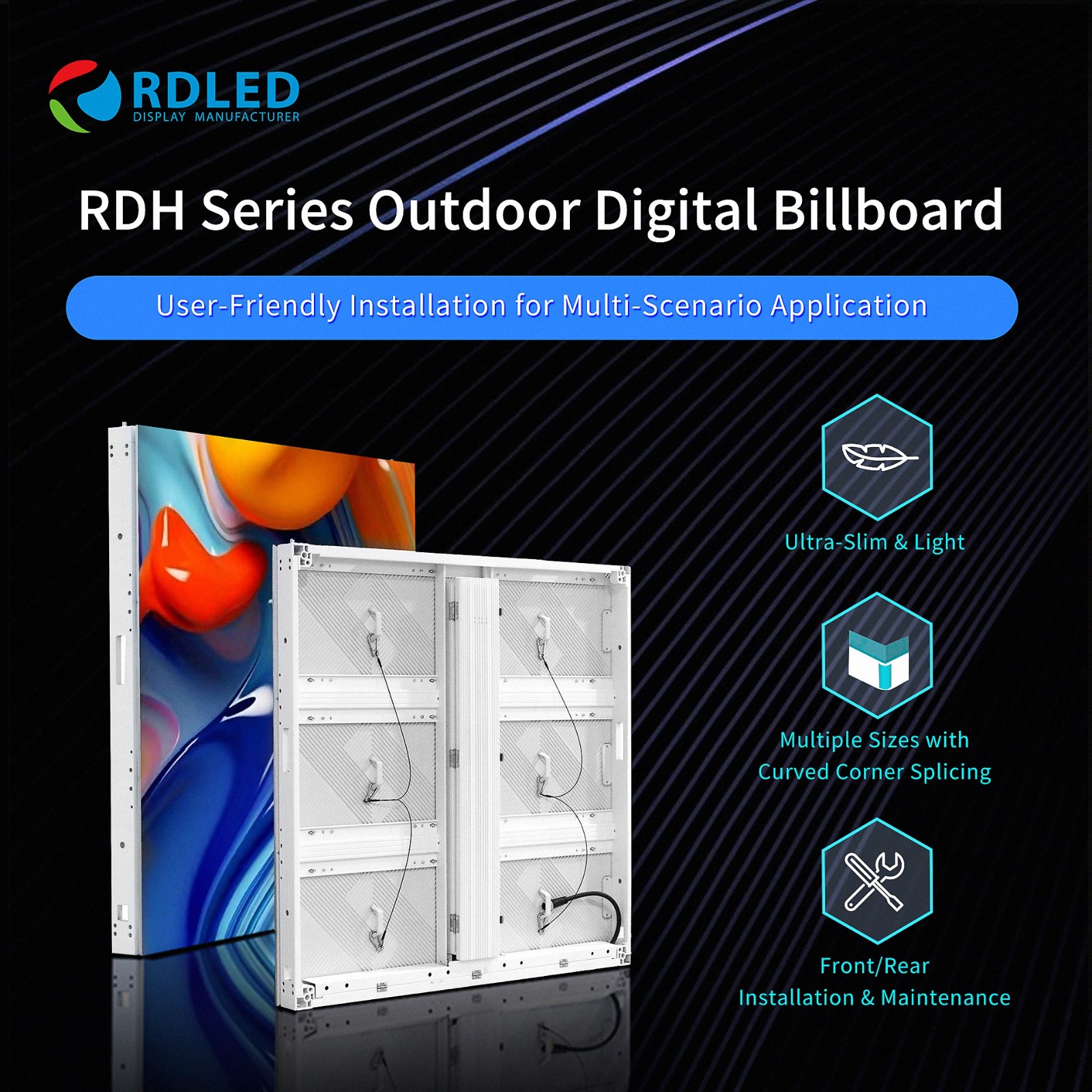

3.Front Serviceable,easy for maintenance.

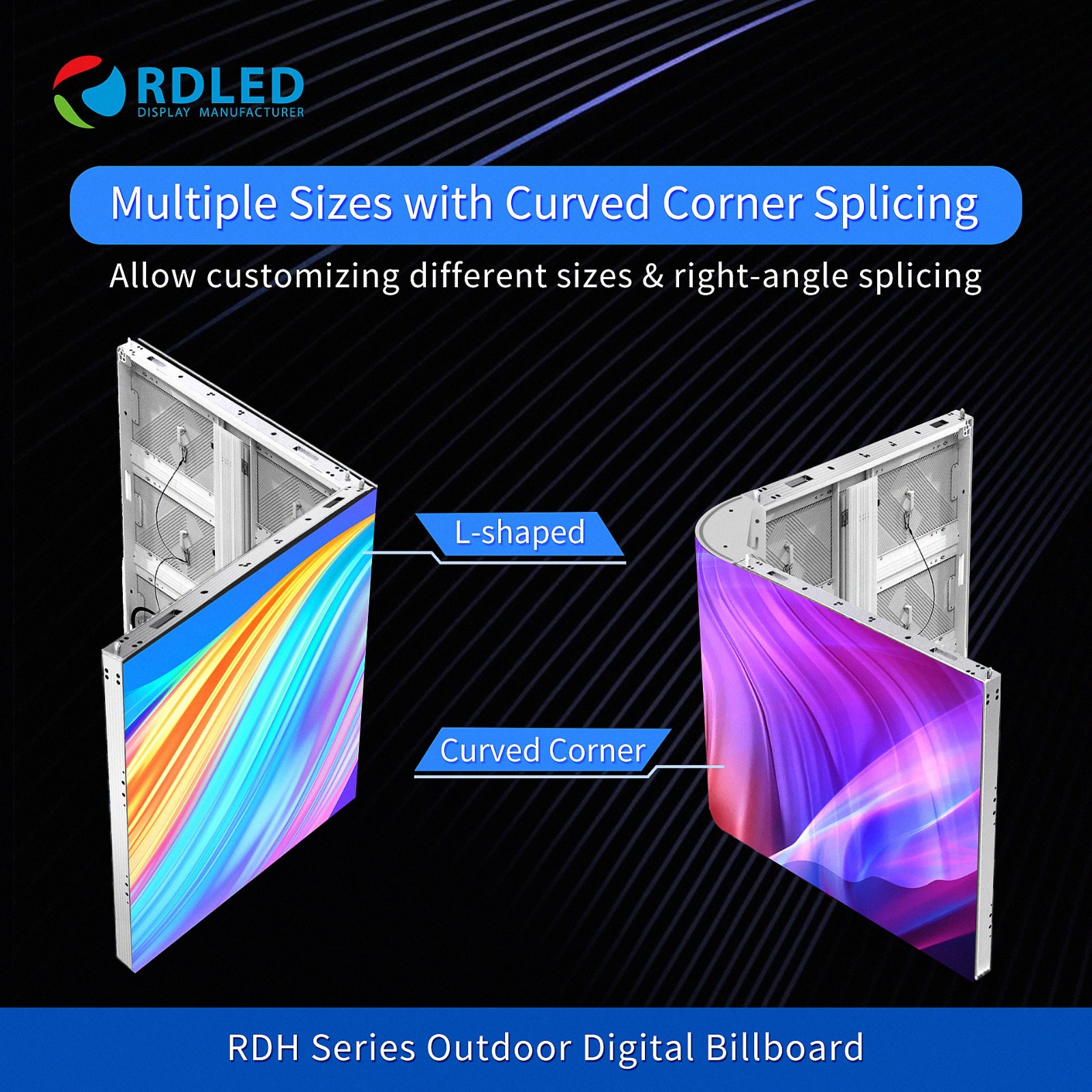

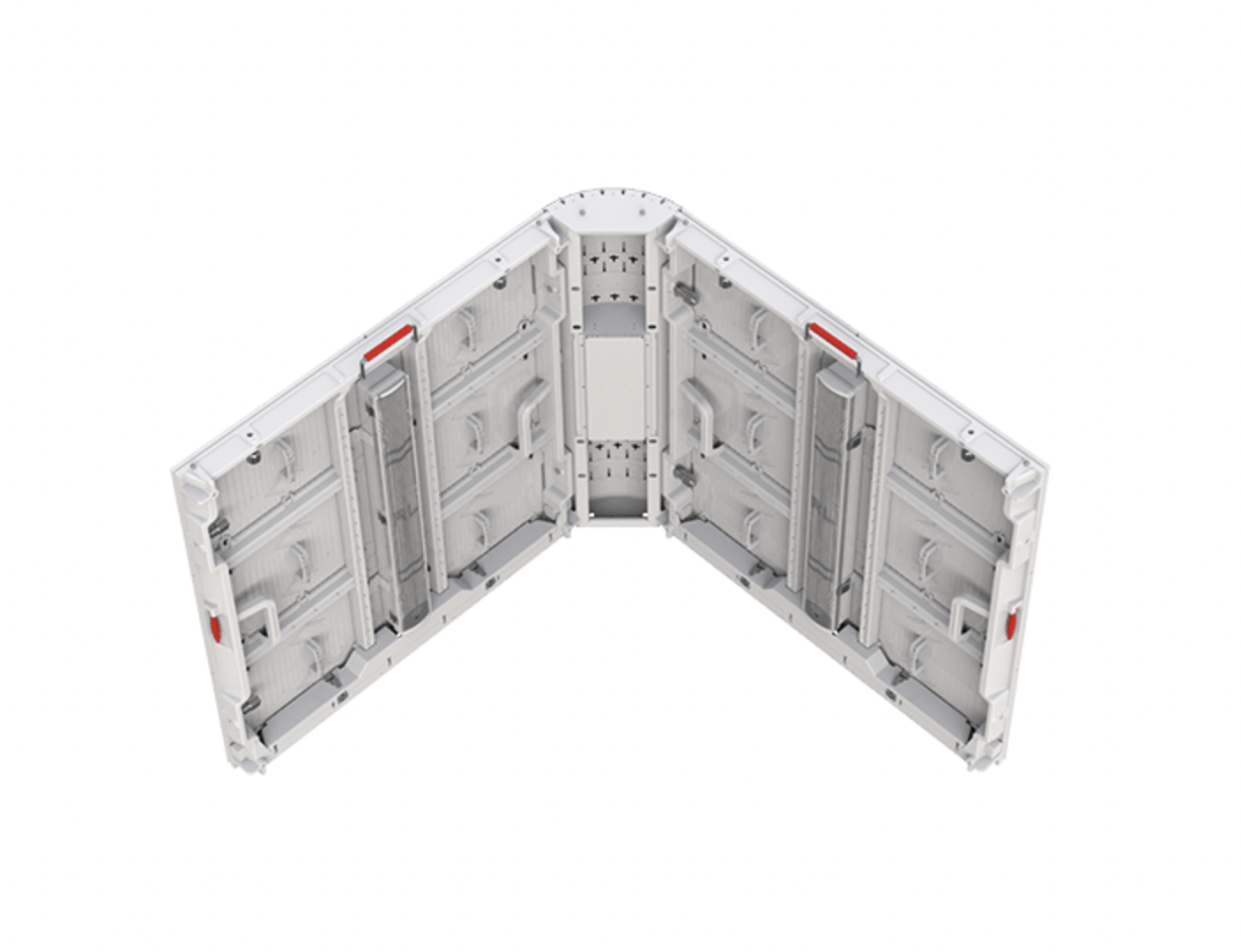

4.Naked Eye 3D and curved design available.

SPECIFICATIONS

Item

RDH Series

RDH Series

Pixel Pitch

5.7mm

10mm

LED Encapsulation

SMD2727

SMD2727

Scan Mode

1/7 Scan

1/2 Scan

Pixel Per Sq.m

30,625 Pixel

10,000 Pixel

Module Size(W*H)

480*320mm

480*320mm

Cabinet Size(W*H*D)

960*960mm

960*960mm

Cabinet Weight

35KG/Piece

35KG/Piece

Max Power Consumption

650Watt/㎡

600Watt/㎡

Brightness(Nits)

10,000

10,000

Maintenance Method

Front Serviceable

Cabinet Material

Aluminun

Refresh Rate

7680hz

Color Temperature

6500K ±500(Adjustable)

Gray Scale

14-16bits

Average Power Consumption

200Watt/㎡

IP Protection

IP67

Operating Temperature

-20°C to 50°C

Working Voltage

100-240Volt(50-60hz)
